Ebara Pumps Model EV-A10
Manufacturers, suppliers, and dealers of Ebara Pumps Model EV-A10
- Selection support from our engineers
- Supplied through the brand’s authorised dealers
- Delivery across India
Specifications

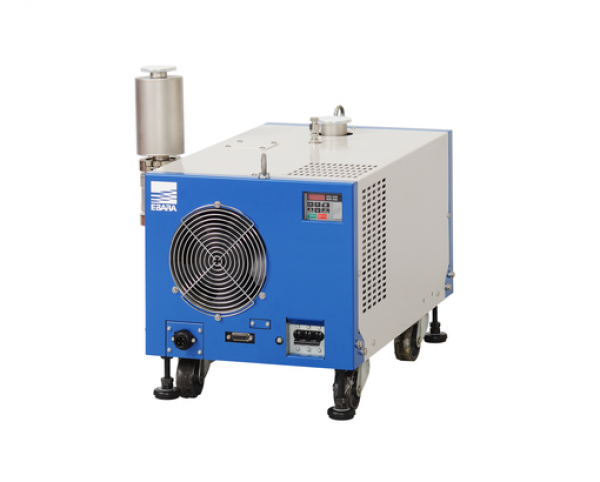

Dry vacuum pump ideal for pumping performance around atmospheric pressure. Compact air-cooled model.
Features and Benefits
Model EV-A10 is a range of air-cooled dry vacuum pumps with a small footprint that need no coolant water. Ideal for repeated pumping performance around atmospheric pressure with excellent exhaust speeds around atmospheric pressure The only utility required is power supply. Low power consumption and quiet operation. Can be used in various environments such as production plants, as well as in testing and research laboratories.
Need a datasheet or performance curve? Request it with your enquiry.
Description
Specifications
| Model | Unit | EV-A10 | |
| Pumping Speed | L/min | 1,000 | |
| Ultimate Pressure | Pa | 3.0* | |
| Water vapor pumping | g/hr | 500 | |
| Connection | Inlet | NW40 | |
| Outlet | NW40 | ||
| Approx. Power at Ultimate Pressure | kW | 1.1 | |
| Cooling system | Air cooled | ||
| Power Supply | Rated voltage 50/60 Hz | Single-phase 200-240V Single-phase 200-240V |
|
| Permissible voltage fluctuation | ±10% | ||
| Power capacity | kVA | 3.0 | |
| Weight | kg | 75 | |
| *Gas ballast: On | |||
